YellowScan
Explorer

Discover our new long-range & multi-platform LiDAR solution.

Screen Shot 2564-09-10 at 13.58.20.png
Solution presentation

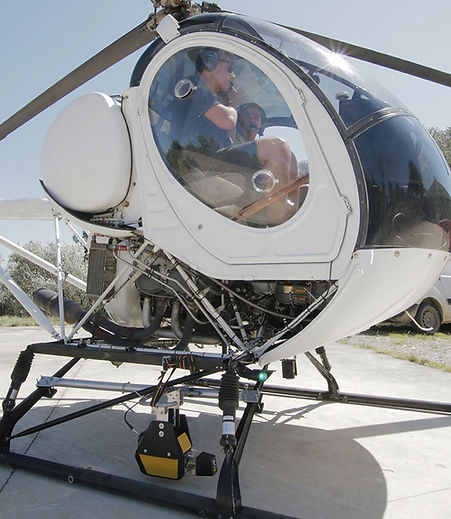

The new YellowScan Explorer can be mounted on a light manned aircraft or switched to different types of UAV platforms.

The YellowScan Explorer is the first LiDAR that can be mounted on a light manned aircraft or helicopter and be switched to a UAV platform like the DJI M300. This versality allows the end user to tackle a wide range of projects with the proven ease-of-use of YellowScan’s UAV LiDAR solutions.

Technical specifications
Screen Shot 2564-09-10 at 14.05.45.png
EXPLORE MICASENSE SOLUTIONS

Our sensors are designed for optimal spectral and spatial resolution and feature a variety of integration options.


Key differentiators

  • Longest range

  • Compact & lightweight

  • Multi-platform


Technologies inside

  • Co-developped Laser Scanner

  • Applanix APX-20 IMU


UAV Integration

  • Manned aircraft

  • Multirotor UAV

  • Fixed-wing UAV


Explorer @500 kHz PRF

  • Platform: Multirotor UAV

  • AGL altitude: 100 m

  • Speed: 10 m/s


Explorer @500 kHz PRF

  • Platform: VTOL

  • AGL altitude: 120 m

  • Speed: 15 m/s


Explorer @400 kHz PRF

  • Platform: Ultralight Manned Aircraft

  • AGL altitude: 200 m

  • Speed: 35 m/s


HMI

The Human-Machine Interface was thought out to be simple and efficient

With LEDs that indicate the LiDAR system’s status and its single button operation. As usual, we followed the “Just Press the Yellow Button” philosophy.

Data Storage

Data storage is not an issue

You don’t need to connect to your LiDAR system to gather data. Just remove the USB stick from the system and go to your computer. As you receive two USBs, this helps you land and take-off again straight away thanks to the second USB stick.



Survey productivity matters to us! With one USB stick you can store LiDAR data from a 6 hour-survey.

Embedded
battery

You‘ve got the power!

Air Flow

No overheating LiDAR system!

We have optimized the temperature management with four suction grids (air flow management) combined with an innovative heat management inside for a better aeration of the system. You can operate the Explorer between -20°C/-4°F and +40°C/104°F.

A set of 2 worldwide certified batteries is shipped with the YellowScan Explorer.
They are high-performance batteries that can easily be swapped in the field for increased productivity.

Package includes

Hardware

  • YellowScan Explorer

  • 1 Charger and 2 batteries

  • 1 GNSS antenna and cable

  • 2 USB flash drives

  • Rugged pelicase

  • Documentation

Software

  • Applanix POSPac UAV

  • YellowScan CloudStation

Services

  • Worldwide support including 1st year unlimited support

  • Boresight calibration certificate

  • 1-year warranty

  • In-person or online training
